Overlay data reference¶

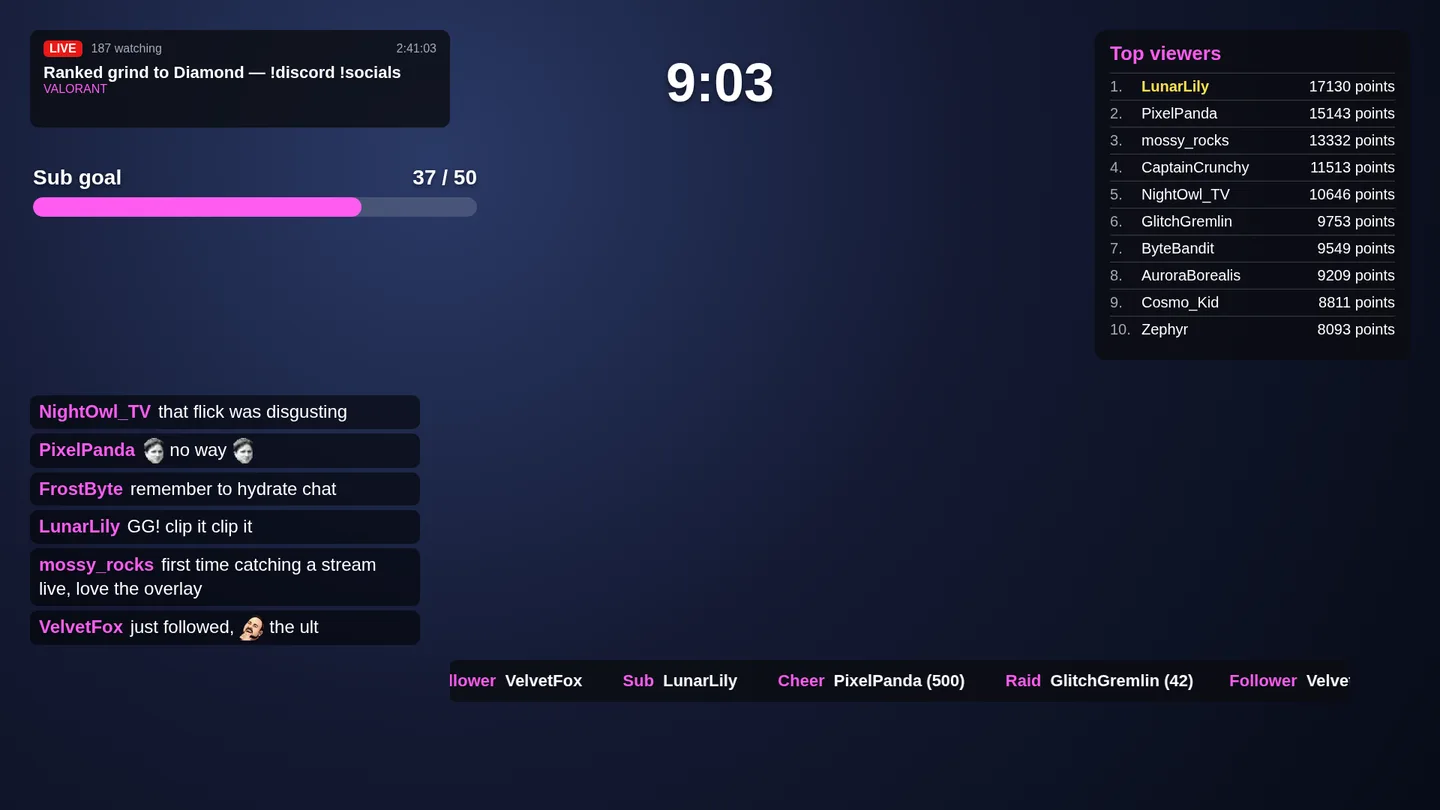

Live data is the shared, constantly updated information CroStream sends to every overlay page: recent chat, recent events, the latest event of each kind, your counters and timers, the stream's state, leaderboards, the end-of-stream credits, the hype train, polls and predictions. The built-in data elements (Chat, Recent events, Latest, Counter, Timer, Leaderboard, Credits, Hype train, Poll and so on) draw from it, and so can your own custom widgets. This page lists every key, its exact JSON shape, and when it changes.

How live data works¶

• One shared set. Every overlay page gets the same data, keyed by name (chat, counter.deaths, leaders.bits.stream). A custom widget receives only the keys it declares; a built-in element reads the keys it needs.
• Pushed on change. When a value changes, the new value of that key is sent to every open page at once. A page that falls behind gets the newest value of each key, never a stale one. Nothing is sent when a recomputed value is identical to the last one.
• Whole values. A key's value is always sent whole: when one chat line arrives, the chat key is sent again with all its lines.
• Some keys survive restarts. latest.* and timer.* are saved and restored when CroStream starts. Counters are re-sent at start from their saved values. events is refilled from the history. Everything else is recomputed after start.
• Tests don't count. Events from a trigger's Test button and integration notices never reach live data, so testing a macro can't put a fake follower in your "latest follower" box. Use real events, or actions that change data (Change a counter, Control a timer).
• Missing until known. A key that hasn't been produced yet is simply absent (and events can be null on a fresh install). Always handle the empty case.
• Dotted keys read the same everywhere. Most keys contain dots. In a custom widget you can read a key whole or walk into it by dots, and templates and scripts agree: {{data.counter.subs}}, sl.get('data.counter.subs'), sl.data.counter.subs and sl.data['counter.subs'] are the same value, and so are {{data.latest.twitch.follow.vars.user}} and sl.data.latest.twitch.follow.vars.user. A family reads as one object: with counter.* declared, {{data.counter}} (or sl.data.counter) holds every counter by name.

Times are RFC 3339 strings in UTC, such as "2026-10-11T19:04:05.123Z". Each value is at most 1 MB.

All keys¶

chat¶

The last 50 chat messages, oldest first.

[
  {
    "id": "c0a1d6f3-2f8e-4c55-9d2e-6c1f0b7a9e11",
    "user": "LunarLily",
    "text": "Kappa that was clean Kappa",
    "time": "2026-10-11T19:04:05.123Z",
    "emotes": [
      { "id": "25", "name": "Kappa" },
      { "id": "25", "name": "Kappa" }
    ]
  }
]

Updates with every chat message. Starts empty when CroStream starts.

events¶

The last 30 events (follows, subs, gifts, cheers, raids, redemptions, stream online and offline, channel updates, ad breaks, hype trains, poll and prediction results, Steam games, hotkeys, queue releases, timer ticks), newest first. Filled from the history at start, so it isn't empty after a restart.

[
  {
    "type": "twitch.cheer",
    "user": "PixelPanda",
    "amount": 500,
    "summary": "cheered 500 bits",
    "time": "2026-10-11T19:02:11Z"
  },
  {
    "type": "twitch.follow",
    "user": "VelvetFox",
    "summary": "followed",
    "time": "2026-10-11T19:01:40Z"
  }
]

Can be null until the first event.

latest¶

latest.<event type> is the newest event of one type, with its variables: the same values a trigger for that event gets, so latest.twitch.cheer carries user, bits and message. All values are strings.

{
  "vars": {
    "user": "PixelPanda",
    "user_login": "pixelpanda",
    "user_id": "123456789",
    "bits": "500",
    "kind": "cheer",
    "message": "Cheer500 lets go",
    "power_up": "",
    "amount": "500",
    "summary": "cheered 500 bits"
  },
  "time": "2026-10-11T19:02:11Z"
}

Every event also has user, summary and, when it has an amount, amount. The other variables:

Every gifted sub also arrives as a twitch.sub (for the recipient, with gifter set), so latest.twitch.sub can be a gifted sub. Chat messages don't produce a latest key; read chat. What each variable means is in Variables.

In a template: {{data.latest.twitch.follow.vars.user}}. In a widget, declare latest.* for all of them, or the exact keys you use.

Counters¶

counter.<name> is the value of a counter kept by the Change a counter action: a whole number.

12

• Counter names are lowercase (the action lowercases them), so the key of a counter you call Deaths is counter.deaths.
• Updates every time the counter changes, and every counter is sent again when CroStream starts.
• A counter that was never changed doesn't exist yet: the key is missing.
• A name with spaces (death count) makes a key with a space. Templates can't spell it; read it in a script as sl.data['counter.death count'], and declare counter.*.

Timers¶

timer.<name> is the state of a countdown or stopwatch run by the Control a timer action (and shown by Timer elements of that name). The server sends only state changes, never ticks: the page works out the time shown from this state.

{
  "mode": "countdown",
  "running": true,
  "endsAt": "2026-10-11T19:30:00Z",
  "remainingMs": 300000,
  "elapsedMs": 0,
  "capMs": 0
}

To show it:

• countdown, running: endsAt − now (not below 0);
• countdown, paused: remainingMs;
• stopwatch, running: elapsedMs + (now − startedAt);
• stopwatch, paused: elapsedMs.

Timer names are 1 to 64 letters, digits, spaces, dots, dashes or underscores, and keep their capitals. A widget can only declare lowercase keys, so declare timer.* and pick the timer in your script. Timers are saved and survive restarts; a running countdown keeps running while CroStream is closed.

stream¶

Your stream's state on Twitch.

{
  "live": true,
  "title": "Ranked grind to Diamond — !discord !socials",
  "category": "VALORANT",
  "viewers": 187,
  "startedAt": "2026-10-11T16:24:00Z"
}

Checked every minute, and at once when you go live or offline, change your title or category, or Twitch connects. A failed check keeps the last value.

Leaderboards¶

leaders.<metric>.<period> is a top-10 list, best first:

[
  { "user": "LunarLily", "value": 17130 },
  { "user": "PixelPanda", "value": 15143 }
]

That makes 15 keys, such as leaders.bits.stream, leaders.gifts.week and leaders.points.all. Points are balances, so all three points periods show the same board. The points and watch boards leave out viewers the viewer database ignores (bots, your alt accounts).

Boards are recomputed 5 seconds after the last follow, sub, gift, cheer, raid or chat message (a burst of chat is one recompute), when the stream goes live or offline, and every 3 minutes regardless. The bits, gifts and chat boards stop updating while history is off; points and watch while the viewer database is off.

credits¶

Everyone who took part in this stream, for end-of-stream credits.

{
  "since": "2026-10-11T16:24:00Z",
  "followers": ["VelvetFox", "NightOwl_TV"],
  "subs": ["LunarLily"],
  "gifters": [{ "user": "Generous", "count": 5 }],
  "cheerers": [{ "user": "PixelPanda", "bits": 500 }],
  "raiders": [{ "user": "BigStreamer", "viewers": 42 }],
  "chatters": ["LunarLily", "PixelPanda", "FrostByte"]
}

Recomputed with the leaderboards, from the history (so it's not updated while history is off).

Hype train¶

{
  "active": true,
  "level": 2,
  "progress": 350,
  "goal": 1000,
  "total": 1350,
  "endsAt": "2026-10-11T19:08:00Z"
}

Updates on every hype train event. When it ends, active turns false, progress and goal go to 0, and level and total keep their last values.

Polls and predictions¶

poll is the current or last poll, prediction the current or last prediction. Both have the same shape.

{
  "active": true,
  "status": "active",
  "title": "Will I beat the boss?",
  "choices": [
    { "title": "Yes", "votes": 12000, "color": "blue" },
    { "title": "No", "votes": 8000, "color": "pink" }
  ],
  "endsAt": "2026-10-11T19:10:00Z"
}

Updates as votes come in. Polls and predictions are Twitch Affiliate and Partner features.

Media folders¶

These two keys exist only inside custom widgets, which can't list a media library folder themselves. For a Media folder field, with folder.* declared, the page lists the chosen folder and sends its files as folders.<field key> and folder.<folder id>: a list of items with at least id, kind (image, video or audio), width and height. The page lists the folder again every 3 minutes. See Media folders.

What isn't live data¶

Steam's library, OBS scenes, queue contents and Discord status are not sent to overlays. Show the latest Steam game with latest.steam.game_started; for anything else, use the HTTP API (GetIntegrationState) from your own tools.

Reading live data outside an overlay¶

The same data is available without a widget, for scripts and tools:

curl -s http://127.0.0.1:8080/overlay/overlay-01m4nr1fbqrd8vhqt7dkh68kwc/state | jq '.data["leaders.bits.stream"]'

The overlay URLs work on both the desktop app's overlay server (http://127.0.0.1:62689) and in browser mode (the address you serve on).
