The settings file¶

Everything you build in CroStream's screens (macros, triggers, queues, pinned Dashboard buttons, integration settings and your preferences) is saved in one file, config.json, in the config folder (see Where files are kept). You never need to open it; the app writes it for you. This page is for when you want to: edit many macros at once, fix something by hand, copy a setup between machines, generate macros from a script, or understand what the app saved.

Overlays, widgets, your media, viewers and history are not in this file; see Other files.

Editing it safely¶

1. Close CroStream first, or be ready to reload. CroStream keeps the settings in memory and writes the whole file whenever you change something in the app, so an unsaved hand edit is overwritten by the next change you make in the UI.
2. Edit the file in any text editor. It's ordinary JSON, written with two-space indents.
3. Load it. Start CroStream, or, if it's running, click Reload on the Triggers or Macros page (or call ReloadConfig). Reload applies macros, triggers, queues, integration settings, history and viewer settings at once, without a restart.

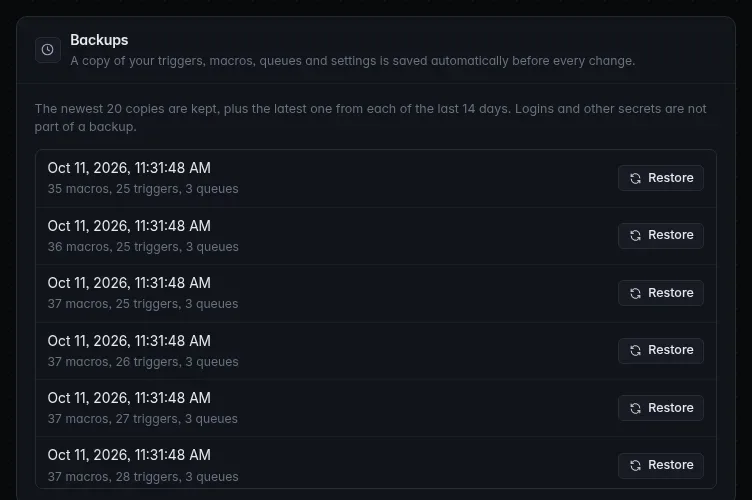

Before every change it makes, CroStream copies the current file into the backups folder next to it (named like config-20261011T151943.647Z.json). It keeps the newest 20 copies, plus the newest copy of each of the last 14 days. Restore one from Settings → Backups; see Backups.

Two kinds of problem are treated differently:

• Structural problems refuse the whole file: invalid JSON, an unknown key anywhere outside params and integrations, a wrong version, a malformed or duplicate ID, two macros (or triggers, or queues) with the same name, a trigger that names a macro that doesn't exist, a step breaking the step rules below.
• Problems with one item only disable that item: an unknown action or trigger type, an unknown provider, or params the action or trigger doesn't accept (including unknown parameter names). The rest of your setup loads, and the app shows the item's error on the Triggers or Macros page.

The whole file¶

{
  "version": 3,
  "integrations": { "twitch": {}, "obs": { "host": "localhost", "port": 4455, "auto_connect": false } },
  "sequences": [ … ],
  "bindings": [ … ],
  "queues": [ … ],
  "history": { "keep_days": 90 },
  "viewers": { "currency": "pixels" },
  "dashboard": { "macros": [ "seq-…" ] },
  "webhooks": { "exposure": "lan", "inbound": [ … ], "destinations": [ … ] },
  "desktop": { "close_to_tray": true },
  "updates": { "channel": "stable" },
  "diagnostics": { "reports": true }
}

Sections at their defaults are left out of the file. A file from an older version (1 or 2, or from before the app was called CroStream) is upgraded when CroStream starts, after it saves a copy as config.v1.json.bak or config.v2.json.bak. See Upgrading.

What the file calls things¶

The file uses CroStream's internal names:

Durations are text in Go's format: "500ms", "30s", "5m", "1h30m". The app writes them in full ("1m0s"). IDs are a lowercase prefix and a 26-character ULID: seq-01m4nr3cqyykwt94nac1zkhpm6. New items need a fresh, unique ID; the easiest way to get one is to create the item in the app. IDs never change, so references between items (a trigger's macro, a step's queue) survive renames.

Integrations¶

integrations holds each integration's settings by its ID. Secrets (the OBS password and login tokens) are never in this file; they're kept in the secrets folder of the config folder.

Settings of integrations this version doesn't know are kept as they are.

Macros¶

Each entry of sequences is a macro:

{
  "id": "seq-01m4nr3cmax6btz4tr8jgjfffx",
  "name": "Sub thanks",
  "timeout": "1m0s",
  "continue_on_error": true,
  "steps": [
    { "id": "alert", "kind": "action", "action": "overlay.alert", "providers": ["overlay"],
      "params": { "target": "overlay-01m4nr1t2xz2zw461bq7erpa90/element-gp8bzatyemrn4653e31n7khfx9", "hold": "8s" } },
    { "id": "wait", "kind": "delay", "delay": "2s" },
    { "id": "thanks", "kind": "action", "action": "chat.send", "providers": ["twitch"],
      "params": { "message": "Thanks for the sub, {user}!" } }
  ]
}

Steps¶

Every step has an id (a lowercase letter, then lowercase letters, digits and _) that's unique within the macro, branches included: it names the step's outputs, as in {thanks.message_id}. Its kind is one of:

{
  "id": "tier", "kind": "switch", "value": "{tier}",
  "cases": [
    { "values": ["3"], "steps": [ { "id": "t3", "kind": "action", "action": "chat.send", "params": { "message": "TIER 3?!" } } ] },
    { "values": ["2", "prime"], "steps": [ { "id": "t2", "kind": "action", "action": "chat.send", "params": { "message": "Thank you!" } } ] }
  ],
  "else": [ { "id": "done", "kind": "stop", "message": "tier 1" } ]
}

switch compares value (after filling in variables) with each case's values as text, ignoring case and surrounding spaces. Only if and switch steps may hold other steps. A macro has at most 500 steps in all, nested at most 8 levels deep.

Conditions¶

An if step's branches are { "when": <condition>, "steps": [...] }. A condition is:

{
  "match": "all",
  "rules": [
    { "left": "{bits}", "op": "gte", "right": "100" },
    { "fact": "obs.scene", "op": "eq", "right": "Gameplay" },
    { "not": true, "left": "{user_role}", "op": "role_gte", "right": "moderator" },
    { "group": { "match": "any", "rules": [ … ] } }
  ]
}

match is all or any. A rule compares left (a template such as {bits}) or a fact (a live value: obs.scene, or <name>:<argument> such as tools.counter:deaths) with right; not inverts it, and group nests a condition. An empty condition holds.

The facts you can check are listed in Conditions.

Actions, steps and providers¶

An action step names the action by its ID. Shared actions have no prefix and run on every integration that provides them: clip (OBS replay and Twitch clip), marker, chat.send, scene.set. Provider actions belong to one integration: twitch.timeout, obs.audio_mute, tools.counter, overlay.alert, viewers.points.

providers limits a step to the listed integrations (["obs"]). Empty or left out, the step runs on every connected integration that provides the action. The full list of actions, with their IDs, parameters and outputs, is in Actions; the HTTP API's GetCatalog lists them too.

Action params¶

params holds the action's parameters by their file names, which are shown in Actions. Most parameters are text and take {variables}, even ones that hold a number ("amount": "500" or "amount": "{bits}"); a few are plain numbers or true/false. When unsure, build the step in the app and copy what it saved. A parameter the action doesn't know, or a value of the wrong type, disables the macro.

{ "id": "points", "kind": "action", "action": "viewers.points", "providers": ["viewers"],
  "params": { "viewer": "{user_login}", "change": "add", "amount": "500", "reason": "Subscribed" } }

Variable naming and JSON params¶

Every step's outputs become variables for the steps after it, under three names:

• {step.provider.key}, always: {twitch_clip.twitch.clip_url};
• {step.key}, from the first provider that succeeded, in manifest order (Twitch, OBS Studio, Steam, Discord, Queues, Tools, Viewers, Overlays), so it's set whenever any provider succeeded: {twitch_clip.clip_url};
• {key} alone, likewise, unless the trigger already set a variable of that name: the trigger's variables are never overwritten.

Parameters that hold JSON (OBS filter settings, OBS plugin requests) fill variables into string values only, so text from viewers can't add keys. See Variables.

Triggers¶

Each entry of bindings is a trigger:

{
  "id": "bind-01m4nqwwap6z14j4pdpt7tkjkm",
  "name": "clip",
  "source": {
    "type": "twitch.chat_command",
    "params": { "command": "!clip", "aliases": ["!c"] },
    "min_role": "everyone",
    "cooldown": "1m0s",
    "user_cooldown": "30s"
  },
  "sequence": "seq-01m4nqwwap513e991pfg4hfsdx"
}

The broadcaster isn't held back by cooldowns.

Older files may have reward_title on redemptions; it still works, but new triggers pick the reward by reward_id. What each event's options do and the variables it sets are in Events.

Queues¶

Each entry of queues is a queue:

{
  "id": "queue-01m4nr38z22pjm7w7rdynxvqsd",
  "name": "Song requests",
  "interval": "3m0s",
  "per_release": 1,
  "max_items": 25,
  "when_full": "refuse",
  "fields": [ { "key": "song", "label": "Song", "default": "{args}" } ],
  "keep_waiting": true,
  "keep_for": "2h0m0s"
}

Webhooks¶

Webhooks: who may reach the listener, the incoming webhooks and the outgoing destinations. Tokens, signing keys and destination secrets are not here; they are in the secrets store.

"webhooks": {
  "exposure": "lan",
  "port": 62690,
  "inbound": [
    {
      "id": "hook-01m4p7bnmvwx8wn3q65kdztznk",
      "name": "Ko-fi",
      "slug": "ko-fi",
      "enabled": true,
      "format": "form",
      "rules": [
        { "var": "donor", "path": "data.from_name" },
        { "var": "amount", "path": "data.amount", "type": "number" },
        { "var": "message", "path": "data.message", "default": "" }
      ],
      "reply": { "status": 202 }
    }
  ],
  "destinations": [
    {
      "id": "dest-01m4p7bnpdsagyspgnm362t8r2",
      "name": "Discord relay",
      "url": "https://relay.example.com/crostream",
      "auth": "bearer",
      "headers": ["X-Source: CroStream"]
    }
  ]
}

An entry of inbound:

An entry of destinations:

A webhook you add by hand has no token yet, and refuses every call until it gets one: open it in the app and save it, which makes the missing secrets.

The Send a webhook step ("action": "webhooks.send", "providers": ["webhooks"]) takes these params: destination (a destination ID), url, method, headers (a list of "Name: Value" lines), body_type (none, text, json, form or json_raw), text, json (a list of {"path", "type", "value"} fields; type is string, number, bool, null or json), json_raw, form (an object of names and values), response (a list of rules like the above), timeout, retries and fail_on_error.

History¶

"history": { "off": false, "keep_days": 90 }

off: true stops recording and reading history, leaving the database as it is. keep_days is 1 to 3650; 0 or left out means 90.

Viewers¶

"viewers": { "off": false, "currency": "pixels", "chat_keep_days": 0, "ignore": ["nightbot", "streamelements"] }

See Viewers.

Dashboard¶

"dashboard": { "macros": ["seq-01m4nqwwap513e991pfg4hfsdx", "seq-01m4nr3cqa2tva4n3aypmpxr1r"] }

The macros pinned as buttons on the Dashboard, in order; at most 50.

Desktop¶

The desktop app's own preferences, from Settings. Browser mode ignores them.

"desktop": {
  "close_to_tray": true,
  "launch_at_login": true,
  "start_minimized": false,
  "notify": { "live": true, "failures": true, "disconnects": true, "updates": false, "login_warnings_off": false }
}

See The desktop app. Hand edits apply after a reload, except launch_at_login: the operating system keeps that registration, so change it in Settings.

Updates¶

"updates": { "channel": "beta", "auto_check": false }

channel is stable or beta (which also gets stable releases); left out, it's the channel your copy was released on. auto_check: false turns off the automatic checks; left out, they're on. See Updates.

Diagnostics¶

"diagnostics": { "reports": true, "tracing": true, "replay": false }

The crash reporting choices. reports turns on sending errors, crashes and logs; tracing and replay turn on performance tracing and session replay, and only count while reports is on. All default to off and are left out of the file while they are. A development build always reports whatever reports says. Hand edits apply after a reload. The environment variables that override this are in Command line.

Export files¶

Settings → Export & import writes the macros, triggers, queues and webhooks you pick to a JSON file, with what they depend on: a trigger brings its macro and incoming webhook, and macros and triggers bring the queues and webhook destinations they use. Integration settings and secrets are never exported. Webhooks are in a webhooks key shaped like the section above (with exposure and port only when Webhook listener settings was ticked), without tokens, signing keys, destination secrets or sample. Parameters that work like a password (the Discord webhook address) are emptied and listed in blanked, so you know to enter them again after importing.

{
  "format": "crostream.bundle",
  "version": 1,
  "exported_at": "2026-10-09T18:00:00Z",
  "sequences": [],
  "bindings": [],
  "queues": [],
  "blanked": ["macro \"Discord ping\", step \"post\": Webhook address"]
}

Files exported by older versions ("format": "streamlink.bundle") still import. On import:

• Add as copies (the default) gives everything new IDs and re-links the references between the items. Names already in use get " (2)", " (3)" and so on.
• Replace matching items overwrites items that have the same ID.

Imported triggers and incoming webhooks always start turned off, and imported webhooks get new tokens. An import never widens exposure. The whole import is checked and saved at once, after one backup. Files over 5 MB, or with more than 500 items of a kind, are refused.

Other files¶

The config folder holds config.json, backups/, secrets/, overlays/ (one JSON file per overlay) and widgets/ (one per custom widget, with history/ and trash/). The state folder holds what CroStream records:

Back up viewers.db and library/ along with the config folder; they aren't part of the settings backups. The folders' locations on each system are in Where files are kept.

Related¶

• Triggers, Macros and Queues: the same things in the app.
• Events, Actions, Conditions and Variables: the full reference.
• HTTP API: read and change all of this from scripts.
• Command line: try a copy of your config safely.
