Headless setup¶

By the end of this page, CroStream runs without a window on one machine (a streaming PC, a mini PC under the desk, a home server), starts by itself, and you control it from a browser on your laptop. It's the same app in browser mode, set up step by step.

flowchart LR
    B[Browser on your laptop] -- "http :8080 (LAN)" --> C[crostream serve]
    C --> T[Twitch]
    C -- obs-websocket --> O[OBS]
    O -- "browser sources :8080/overlay/…" --> C
    L[Laptop SSH tunnel :62689] -. one-time Twitch login .-> C

What you need¶

• CroStream on the host machine, and a Twitch account.
• A laptop (or any computer or tablet) on the same trusted network, with a browser. For the Twitch login, the laptop also needs SSH access to the host (or do the login once at the host itself).
• OBS 28 or newer with its WebSocket server on, on the host or another machine. See OBS.
• Not the desktop app running at the same time on the host: the two share one setup and can't run together.

1. Start it¶

1. Find the host's LAN address, such as 192.168.1.50. A fixed address (a DHCP reservation on your router) saves you from changing it later.

2. Start CroStream, listening on that address:

   crostream serve -listen 192.168.1.50:8080


   It prints CroStream web UI: http://192.168.1.50:8080/ and a reminder that there's no login.

3. If you reach the host by a name, add it with -host, port included:

   crostream serve -listen 192.168.1.50:8080 -host streampc:8080


4. On your laptop, open http://192.168.1.50:8080/ (or http://streampc:8080/). The full CroStream UI appears.

If the page doesn't load, check the host's firewall allows TCP port 8080 from your network. If it loads but says "unexpected host", see Allowed names.

2. Log in to Twitch¶

Twitch returns to localhost:62689 on the host after you approve the login, so tunnel that port from your laptop for the few seconds it takes:

1. On your laptop:

   ssh -N -L 62689:127.0.0.1:62689 <user>@192.168.1.50


2. In the browser UI, open Integrations → Twitch, click Login, then Open login page, and approve CroStream on Twitch.

3. When the Twitch card shows your account, stop the tunnel with Ctrl+C.

Details and the reasons are in Twitch login from another machine. You'll repeat this when the login expires; CroStream warns you ahead of time (see Login warnings).

3. Connect OBS¶

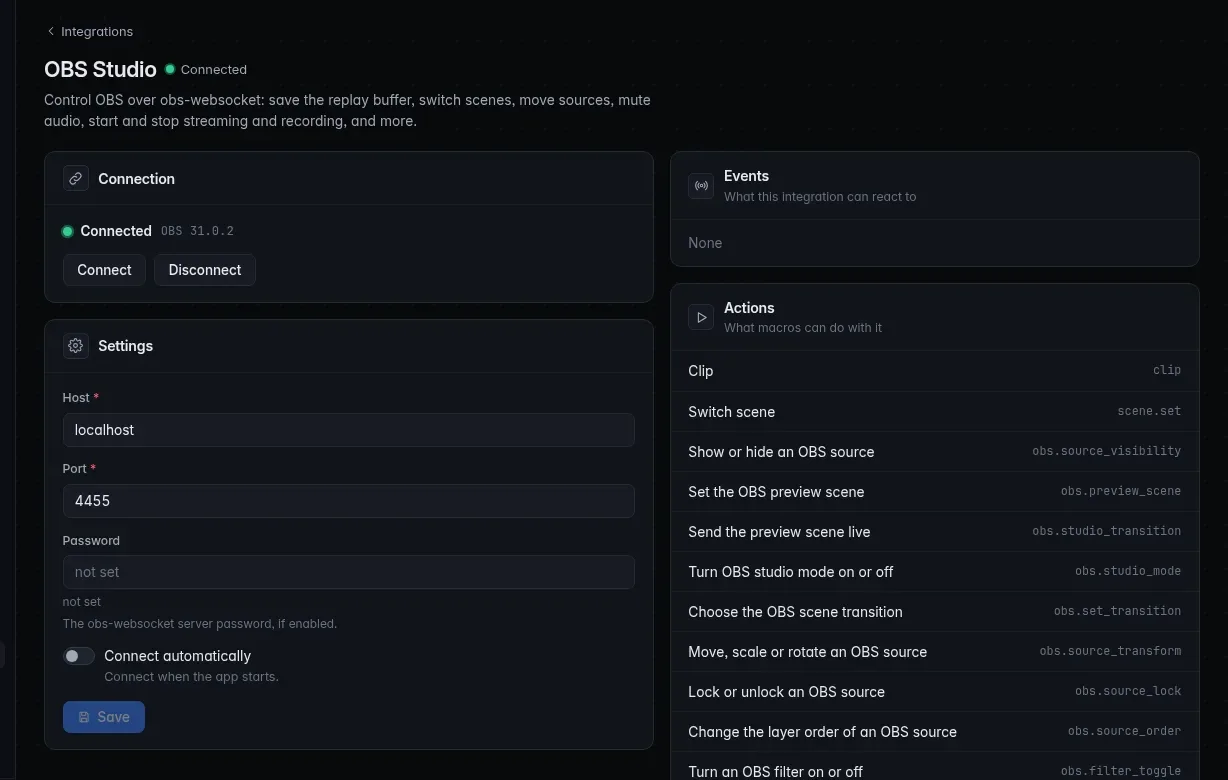

1. In the browser UI, open Integrations → OBS Studio.
2. Set Host to the machine running OBS (localhost when it's the same machine), the Port (default 4455) and the Password from OBS's WebSocket settings.
3. Switch on Connect automatically, so CroStream reconnects whenever it starts. Click Save, then Connect.

For overlays, add browser sources in OBS with the URLs from Copy OBS URL. Open the UI by an address OBS can reach before copying: if OBS runs on the host itself, http://127.0.0.1:62689/overlay/<id> works there too. See Overlays in browser mode.

4. Keep it running¶

Run CroStream as a background service so it starts with the machine and restarts if it stops. It must run as the same user whose setup it uses.

schtasks /Create /TN "CroStream serve" /SC ONLOGON /TR "\"C:\path\to\crostream.exe\" serve -listen 192.168.1.50:8080"

5. Test it¶

1. Open the Dashboard in the browser. Twitch and OBS show as connected in the status bar.
2. Open Triggers, pick your !clip trigger and click Test. Activity shows the run.
3. Close the browser, wait a moment and open the address again: CroStream kept running. Reboot the host to check it starts by itself.

Reverse proxies¶

A reverse proxy (nginx, Caddy, Traefik) in front of CroStream can add HTTPS and, more importantly, a login, which CroStream doesn't have. Run the proxy on the CroStream machine and give CroStream two things:

1. Host: pass the browser's Host header through, and allow that name with -host (with the port the browser uses, or none for 443).
2. Scheme: send X-Forwarded-Proto: https. From it CroStream knows the browser's real address (https:// plus the Host) and uses it for two checks:
   • Origin. Browsers send Origin: https://your.name with every button press; CroStream accepts it as its own, so buttons work without rewriting anything.
   • Custom widgets. Their frame page carries a security policy that names the address the browser uses, so widgets show over HTTPS with no extra configuration.

CroStream only believes X-Forwarded-Proto from a proxy that connects over loopback (127.0.0.1 or ::1); from any other machine it's ignored, so nobody else can choose which address CroStream trusts. A proxy on another machine would have to rewrite Origin to http:// plus the Host, and custom widgets wouldn't show through it.

Also turn off response buffering, so the live event stream (/api/events) and the overlays' streams arrive at once.

This nginx configuration works with CroStream started as crostream serve -listen 127.0.0.1:8080 -host crostream.example.com. Replace crostream.example.com, the certificate paths and the authentication with your own:

server {
    listen 443 ssl;
    server_name crostream.example.com;
    ssl_certificate     /etc/ssl/crostream.crt;
    ssl_certificate_key /etc/ssl/crostream.key;

    # Your login goes here, for example:
    auth_basic           "CroStream";
    auth_basic_user_file /etc/nginx/crostream.htpasswd;

    client_max_body_size 64m;  # media uploads

    location / {
        proxy_pass http://127.0.0.1:8080;
        proxy_set_header Host $http_host;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_http_version 1.1;
        proxy_buffering off;
        proxy_read_timeout 1h;
    }
}

Keep CroStream itself on 127.0.0.1 behind a proxy on the same machine, so the proxy is the only way in and CroStream trusts its X-Forwarded-Proto.
